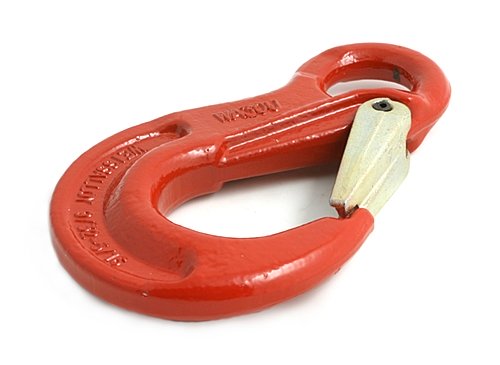

Hook Eye Type Sling Iron Catch
Hook Eye Type Sling Iron Catch. Grade 80. These hooks can be used on chains, ropes and straps. They can be connected with a component connector. Can be used on towing slings, will hook into a toweye on vehicle. We can supply Grade 100 call office for special order requirements 01763 271156.
Fatigue rated x 1.5WLL for 20,000 cycles. Proof tested 2.5times working load limit. 100% Magnaflux crack detected. Super alloy steel. XN333.
Hook Opening 18.5mm, Bearing point to Bearing Point 80.5mm, Eye Dia 20mm
Hook Opening 22mm, Bearing Point to Bearing Point 95.5mm, Eye Dia 25mm
Hook Opening 28mm, Bearing Point to Bearing Point 120.5mm, Eye Dia. 34mm
Hook Opening 35mm, Bearing Point to Bearing Point 150mm, Eye Dia 43mm
