55 inch V Brother with TSH

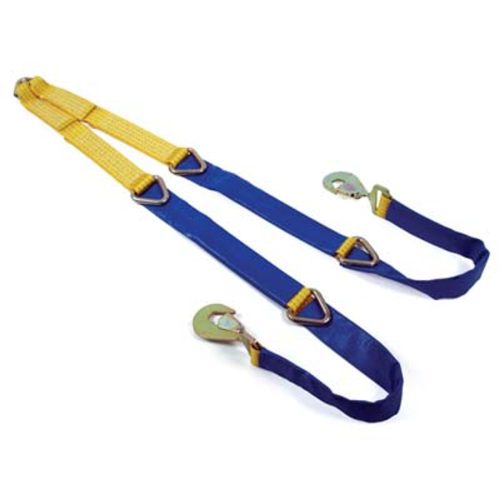

55″ ‘V’ Winch Brother with TSH Economy Brother strap.
Used to give a central straight line pull when loading a casualty vehicle onto a flat bed recovery truck. Each leg of can be attached around the wishbone or part of the suspension and hooked back into the delta links on the legs of the strap.
**DO NOT attach to the driveshaft or track-rod. The strap needs to be kept straight it is not to be used for pulling at angles and not for pulling cars out of ditches.
A Top Delta, with two 55″ legs with two hook back points for different length wishbone application.
- 2 leg assembly
- Breaking Force Minimum (BFmin) 4000daN (kg) – Lashing Capacity (LC) 2000daN (kg)
- Two position delta rings to lengthen/shorten legs
- 1.5m full extended, 1.2m snaphook to first delta, 1.0m snap hook looped to second delta
- Forged Delta fitted at top and at shortening positions
- Terminating in Twisted Snap Hooks
- Manufactured and labelled in accordance with BS EN 12195-2:2001
- weight 2.6kg
Colour of strap may differ from the picture
